Getting Started with Selections
Selection elements get information by asking users to pick one or more answers from a pre-defined list.
The X-Designer provides you with the following Selection options:
Selection Type | Description |
|---|---|
Users select one of two possible answers. The answers may be literally Yes or No, as in the example above, or they may consist of any other wording (e.g., Loans or Lines of Credit). | |
Choices | Choice lists can be:
In addition, you can use a choice display format that enables the user to select:
|
Users indicate their current level of satisfaction by selecting a value from a list of preset display options, e.g., Stars, Like/Dislike icons, Slider, etc. Collected satisfaction ratings can optionally be aggregated and averaged into Satisfaction Scores for broader performance evaluations. | |

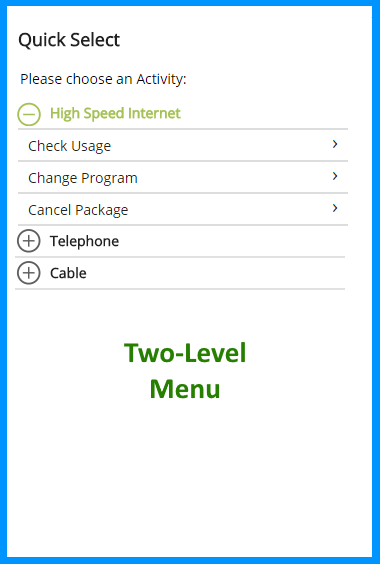

Users select both a category and a topic from a predefined menu and the Flow continues immediately to the next page, based on their selection. There is no need to click Next following the selection. Unlike the other Selection elements which are created inside a Page, Two-Level Menus are created directly from the Visual Page context menu on the Flow Map. |

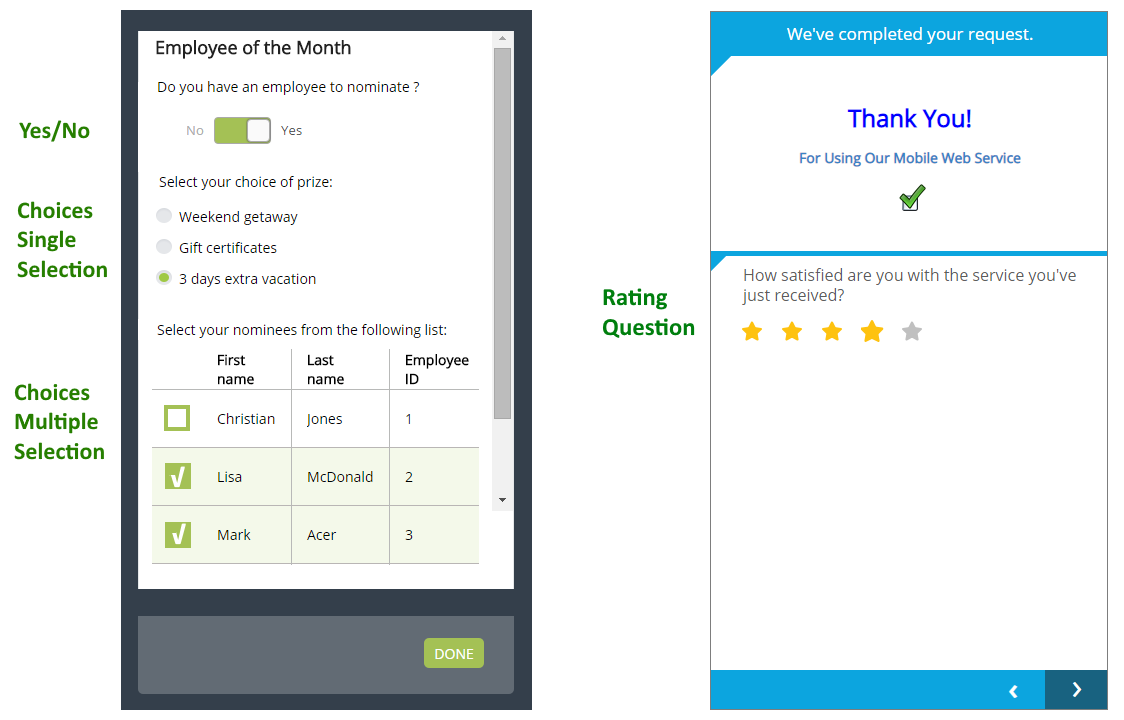

The examples below provide a sample for each Selection option:
 |
 |
Design Considerations When Using Choices Types
Most Choices type questions enable you to:
Define the user question that accompanies the choice
Set the choice Display type, for example, radio buttons, dropdown menu or multiple choice
Set validation and security settings
Assign a variable (or a collection) to hold the user choice selection
Add a Show/Hide Rule that controls when the choice is displayed
Assign a HTML reference ID that is available for use outside of Interact, for example in CSS or application extensions
Using More than One Selection Element on a Visual Page
When you design your Selection questions, keep in mind that a Page can display multiple questions (as in the example above).

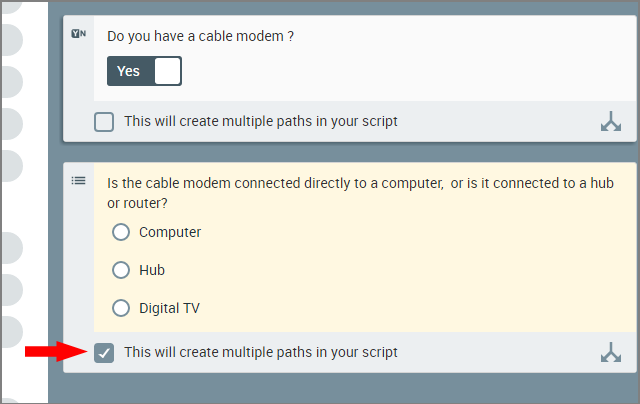

When there is more than one Selection question, you'll need to decide which question will determine the Flow after a selection is made. The checkbox This will create multiple paths in your script is provided for this purpose, as shown below:
 |
Unlike the other Selection elements, a Page can contain only a single Two-Level Menu element.
