Viewing Integration Points

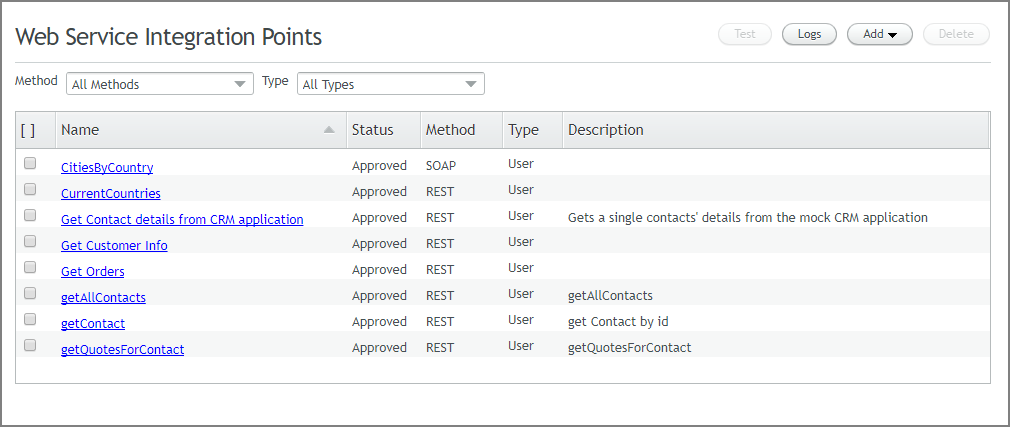

The Web Service Integration Points page lists all configured Integration Points and provides basic information about each.
 |
You can use the dropdown menus at the top of the grid to filter the list of Integration Points according to its access method and/or type.
The checkboxes at the left side of the grid enable you to select one or more Integration Points on which to perform administrative actions.
Clicking on a column header sorts the list by the selected attribute.
The following basic information is provided for each Integration Point:
Column | Description/Notes |
|---|---|
Name | Name of the Integration Point. Click the Name of an Integration Point to display its details page. |
Status | Draft or Approved. Approved Integration Points are immediately available for use in the X-Designer. |
Method | SOAP or REST |
Type | |
Description | Relevant notes, generally describing the purpose of the Integration Point. |
Viewing Integration Point Details
Click the Name of the Integration Point you want to display. From the details page, you can perform the following administrative actions:
Testing
Editing
Approval
Deletion
The details page of an Integration Point also displays its invocation, request and response parameters.

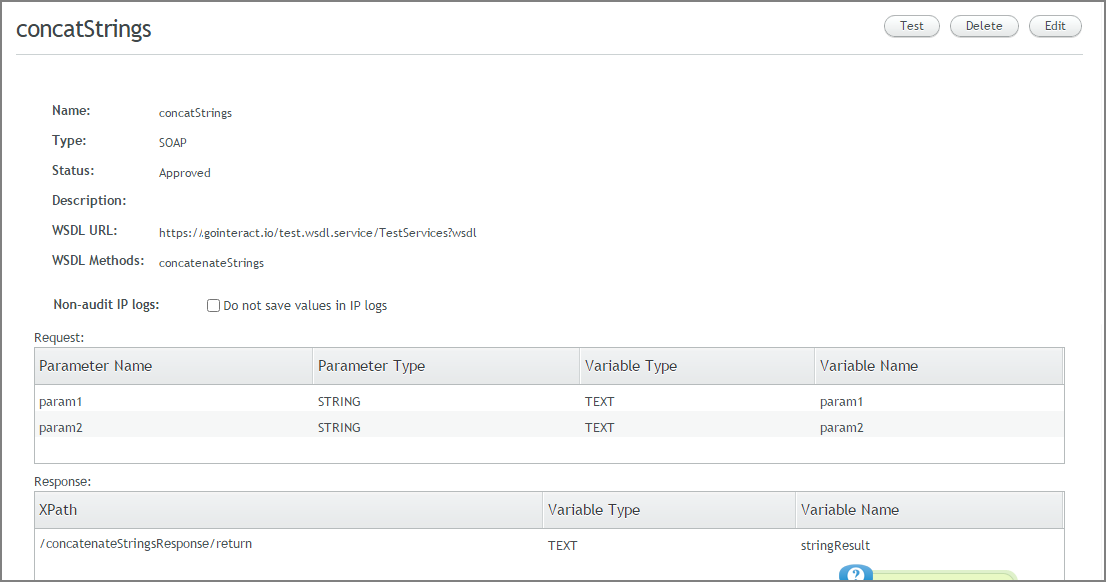

SOAP Integration Points will display the WSDL and the selected methods:
 |
REST Integration Points will display the endpoint URL and the request Header/Body parameters:
 |
