Amazon Connect Configuration in Cloud Admin Portal

  1. Login to Cloud Admin Portal with valid Email address and Password.

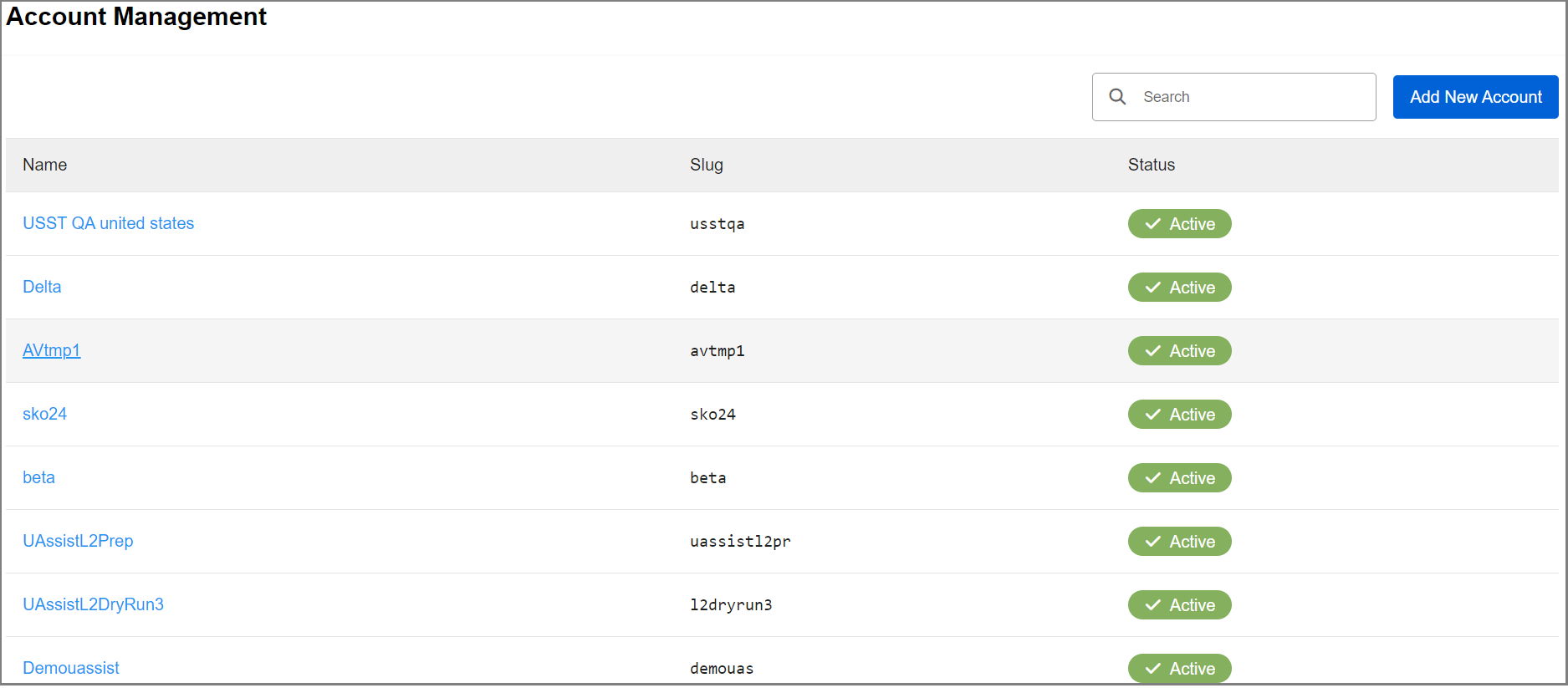

  2. Click Accounts from left pane. You can see a list of customers/tenants already exist for your organization.

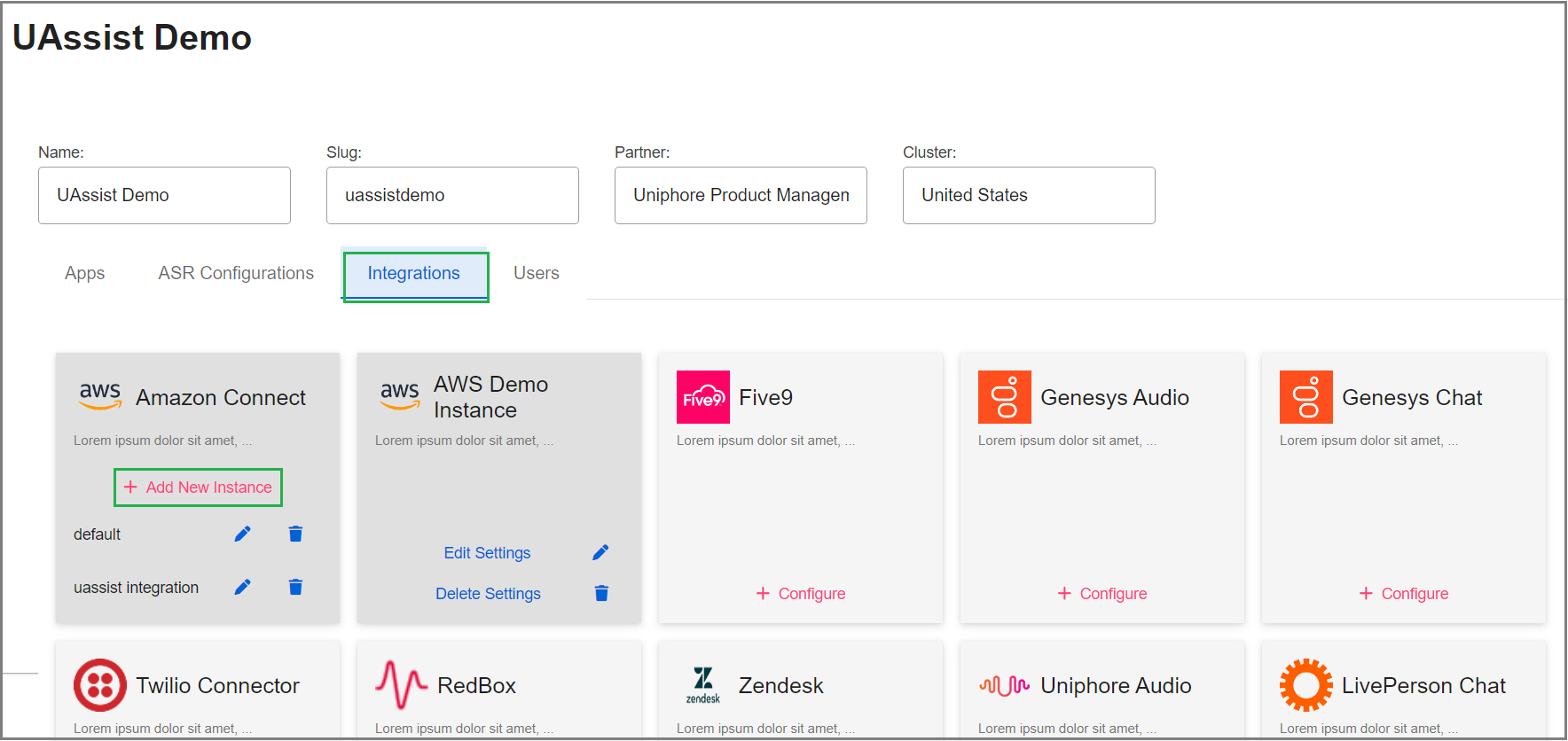

  3. Click on the specific tenant, then the Integrations tab.

  4. In the Amazon Connect tile, click Add New Instance.

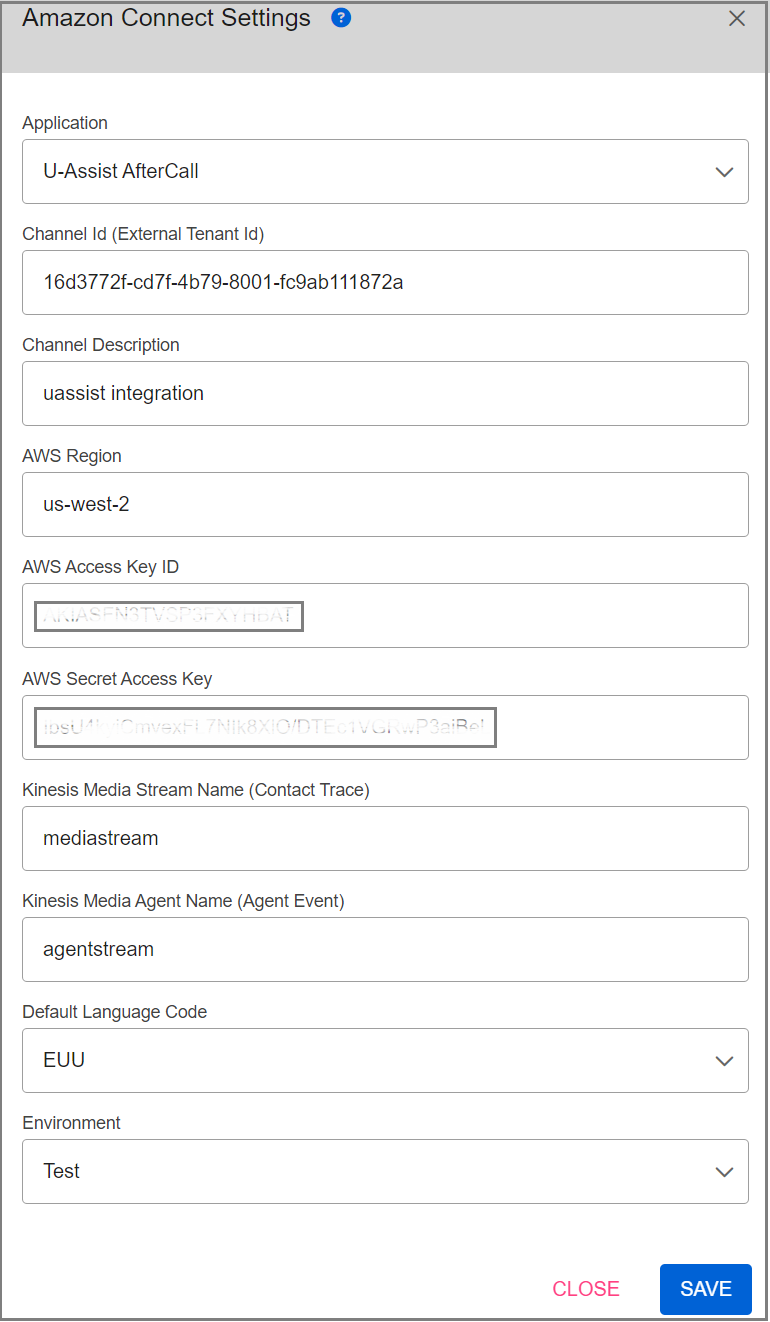

  5. Provide the following details:


    1. Select U-Assist AfterCall application from the Application drodown list.

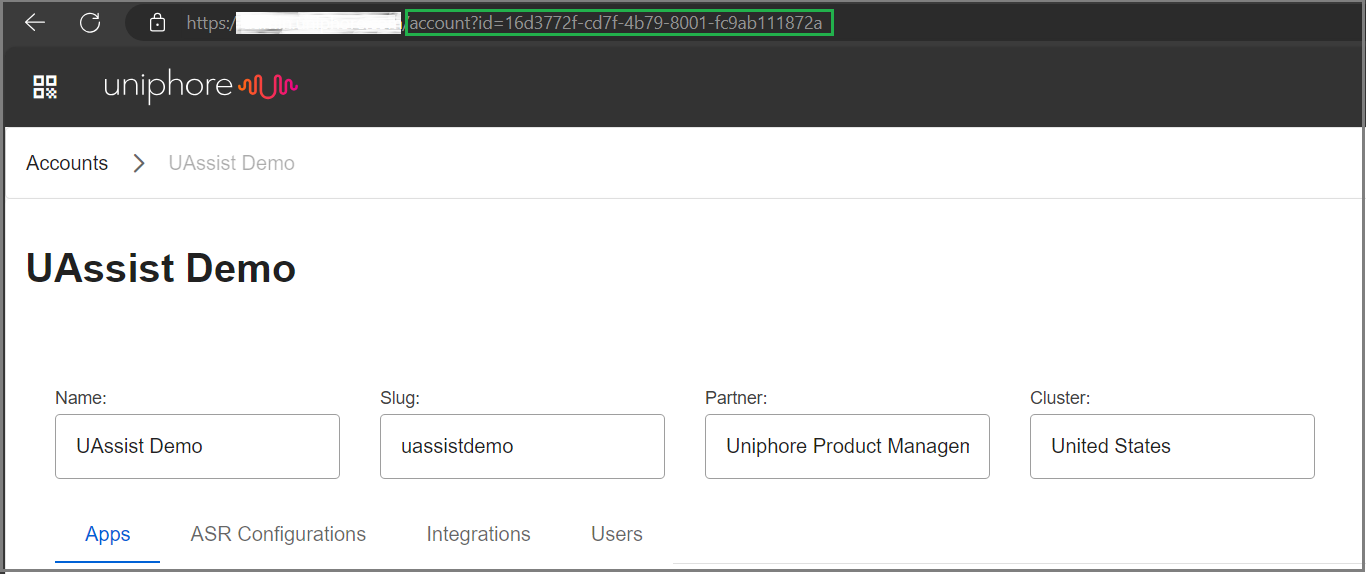

    2. Mention the Channel ID of the specific tenant. This ID is automatically generated while creating the tenant and displayed in the selected tenant's URL.


      Important

      The Channel ID must be unique for each tenant. Each tenant's Channel ID is only used for a single Amazon Connect demo instance.

    3. Mention the channel's description in the Channel Description field.

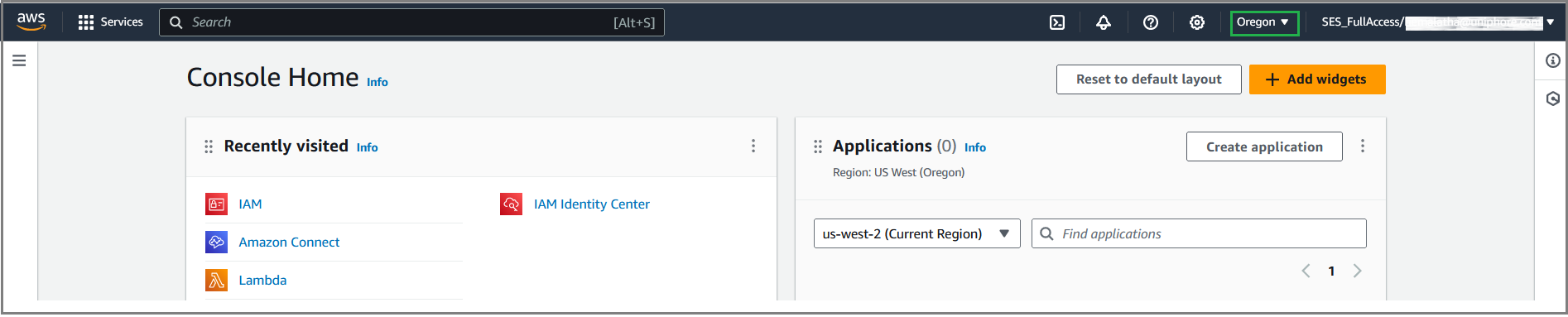

    4. Mention the AWS Region. The AWS Region value is displayed next to the username on the Amazon Connect Console home page.


    5. Mention the Access Key ID and Secret Access Key in the respective fields. To get these values, refer here.

      Note

      If you are having issues obtaining AWS access keys, please contact the Delivery or Platform teams.

    6. Mention the media stream name created for contact trace records in the Kinesis Media Stream Name field.

    7. Mention the media agent name created for agent events in the Kinesis Media Agent Name field.

    8. Select the language code from the Default Language Code field.

    9. Select any one of the operating environments (Dev, Test or Prod) from the dropdown list.

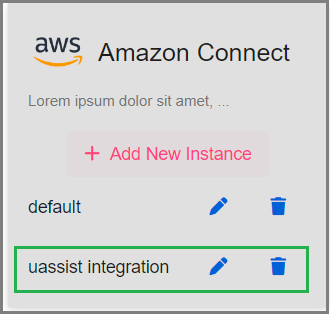

  6. Click Save. The newly created Amazon Connect instance will be shown in the Amazon Connect tile.

To get AWS Access Key and Secret Access Key

  1. Sign in to the IAM Console with your AWS account ID, IAM user name, and password.

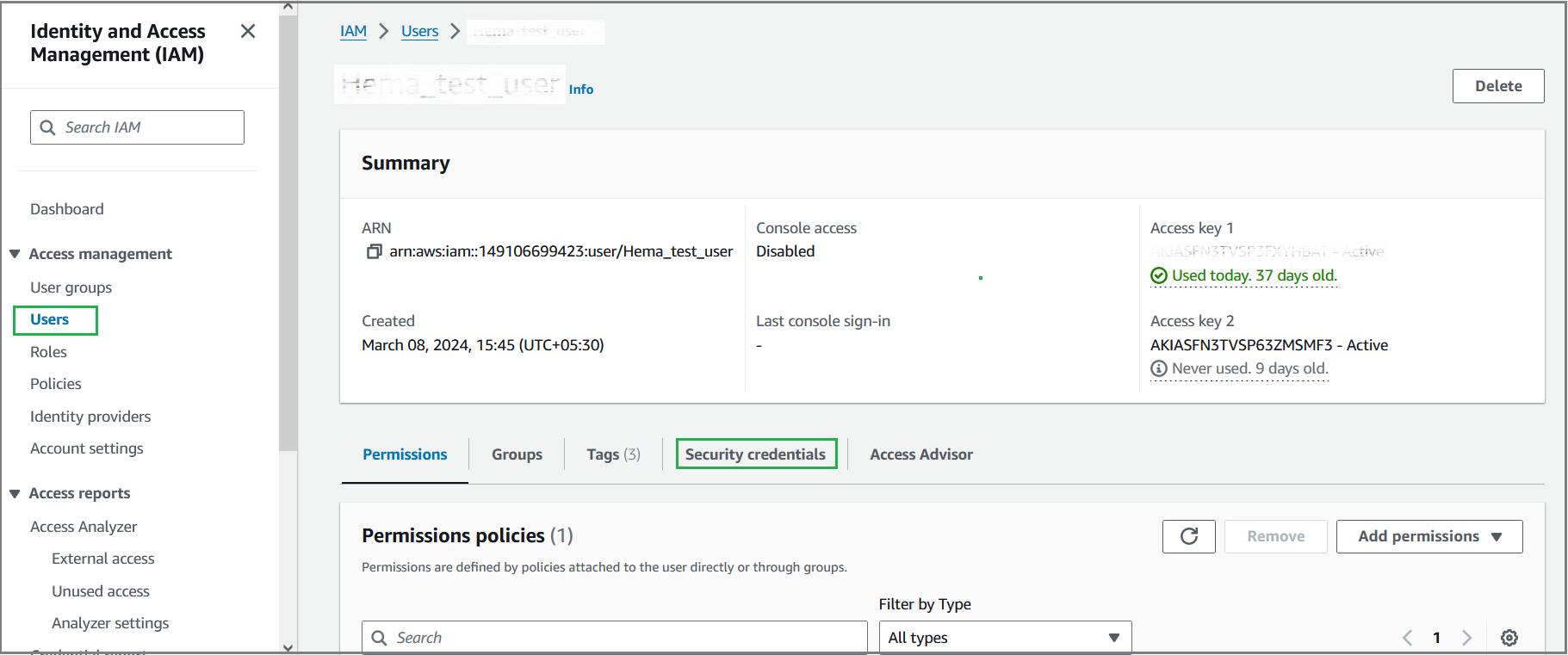

  2. Select Users from the left pane. Choose your username, followed by Security credentials.

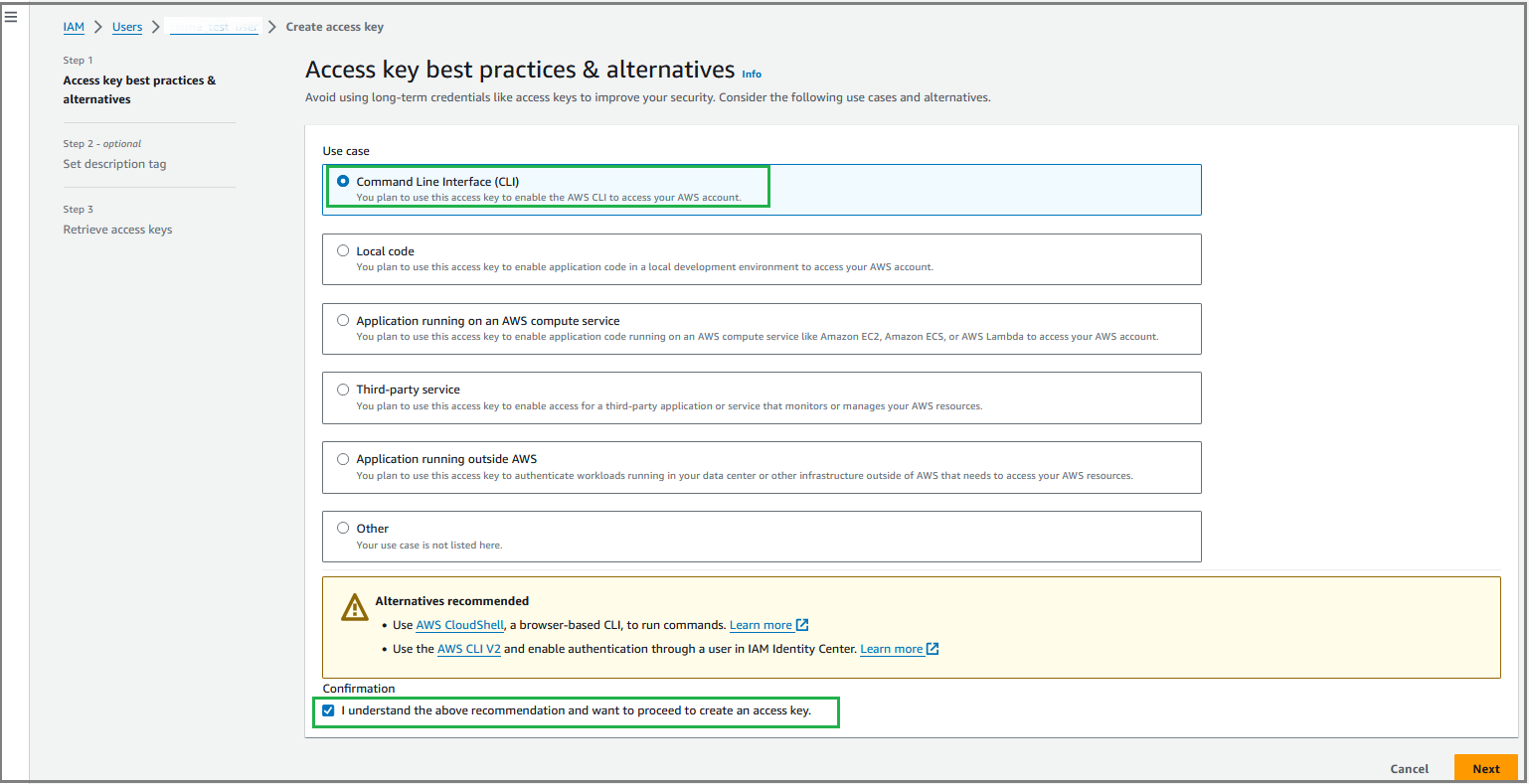

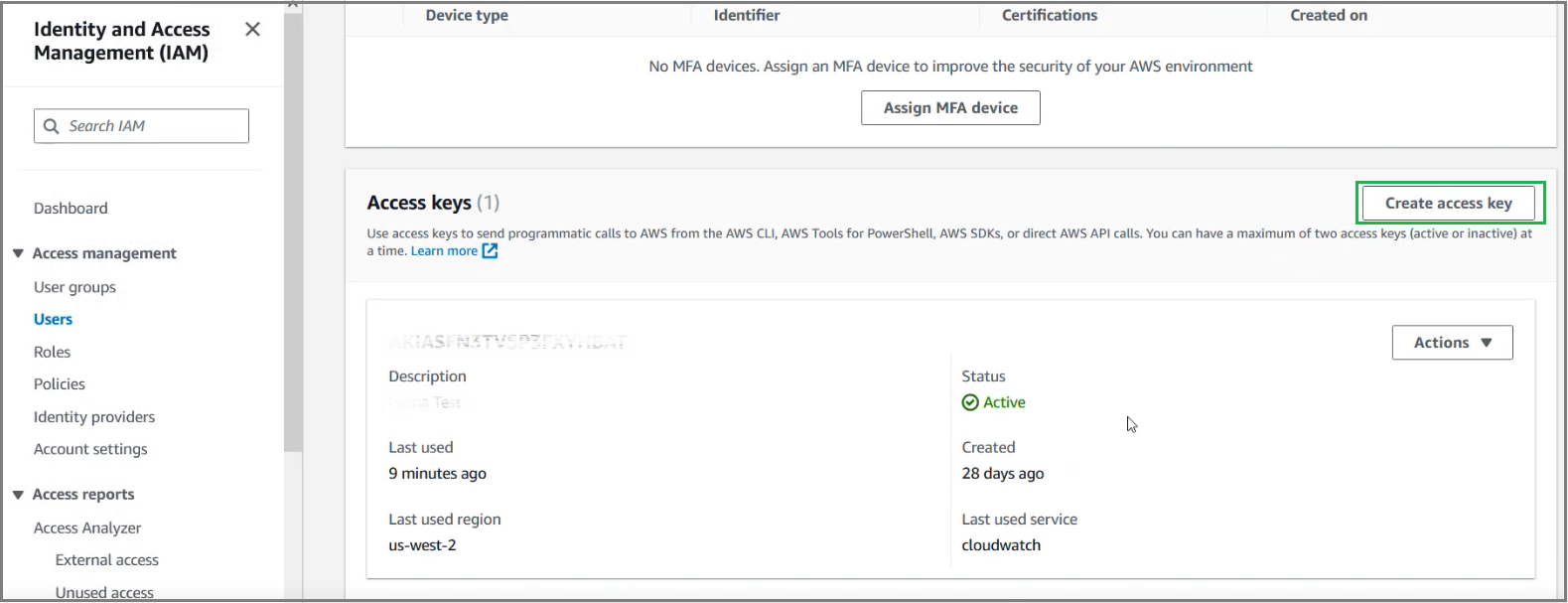

  3. Click Create access key. Select the Command Line Interface (CLI) option and the Confirmation checkbox and then click Next.

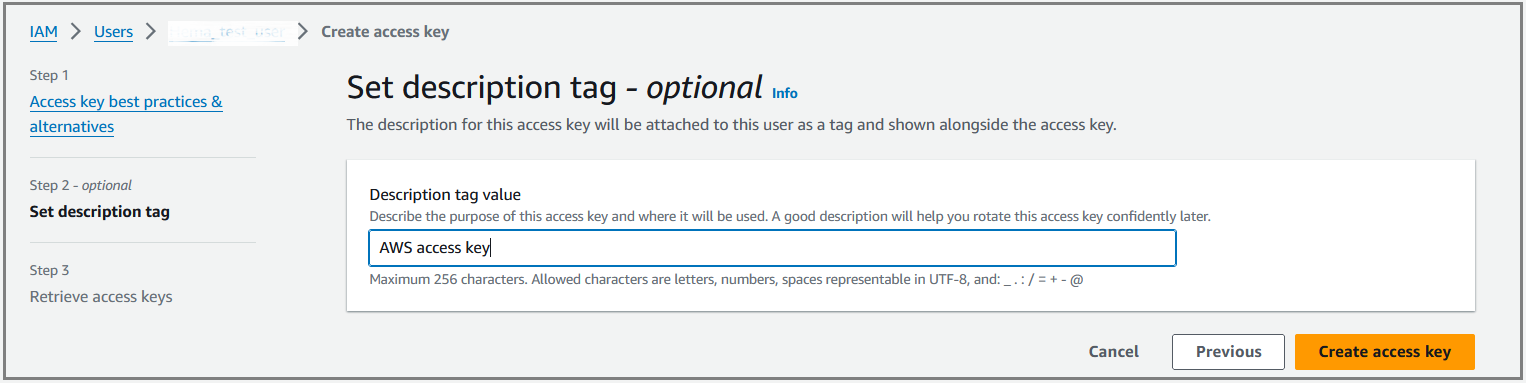

  4. Mention the description of this access key and click Create access key.

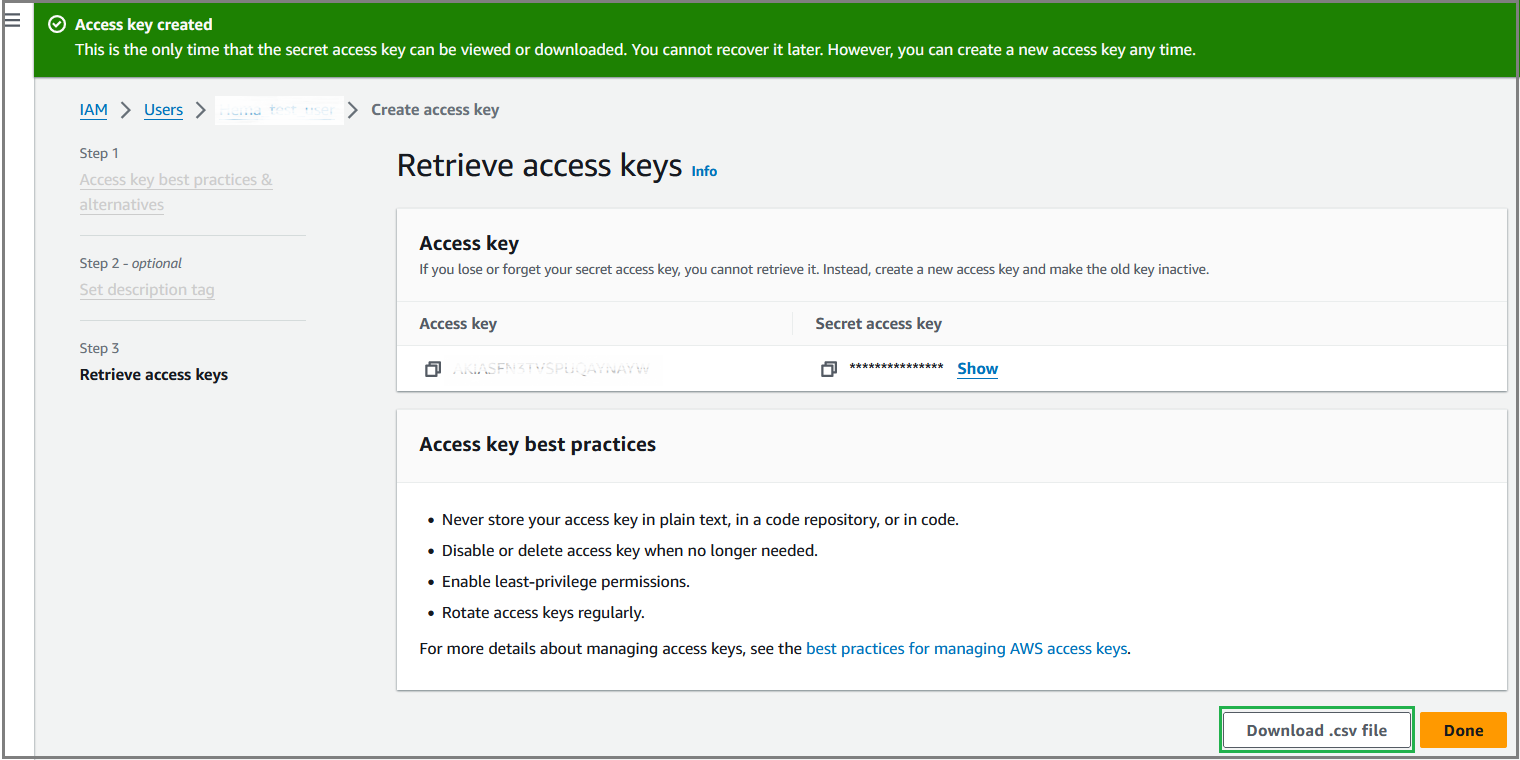

  5. Click Download .csv file to download the access key file (.csv file). You can get the Access key ID and Secret access key from the downloaded file.


  6. Click Done to exit from the Create access key page.

Map Live Agent with U-Assist User

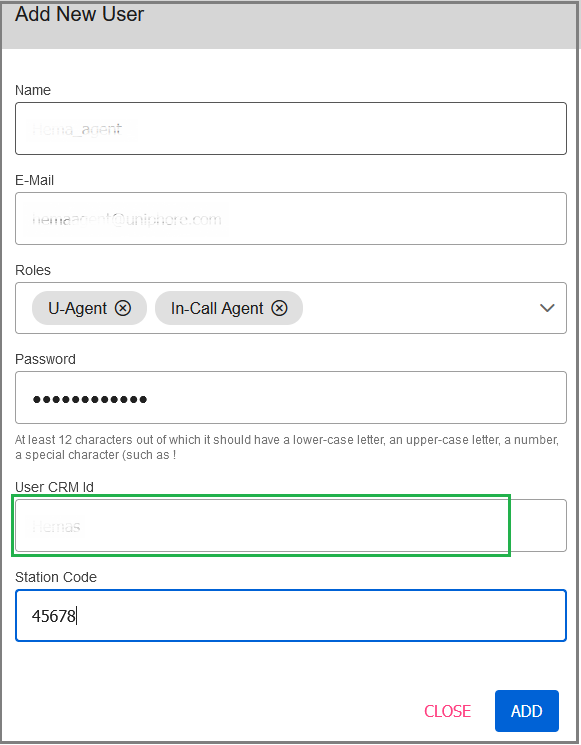

While creating an Agent user in the Cloud Admin Portal, the live Agent user name created in the Amazon Connect should be configured in the User CRM Id field.
