X-Console Home Page
The X-Console Home page is displayed upon login to the X-Console.

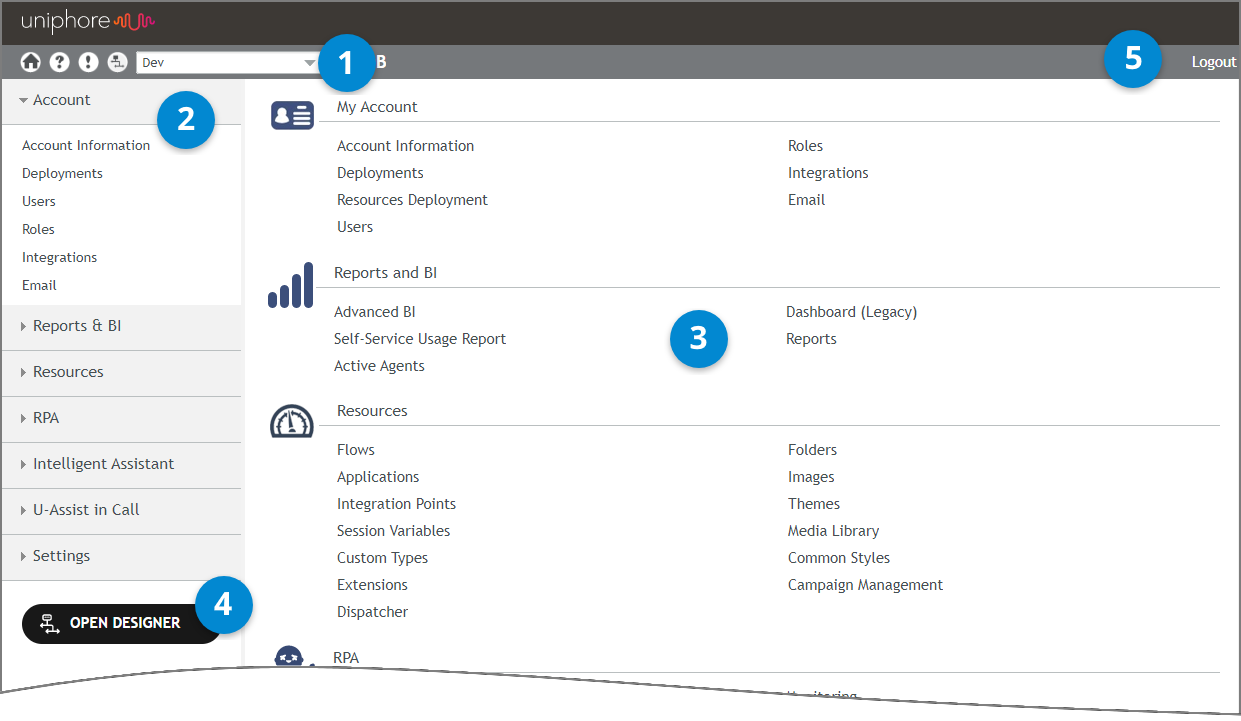

The Home page is divided into three main areas: the Toolbar (top), Menu Bar (left) and Page Details (center).
 |
Item | Element | Description | |
|---|---|---|---|

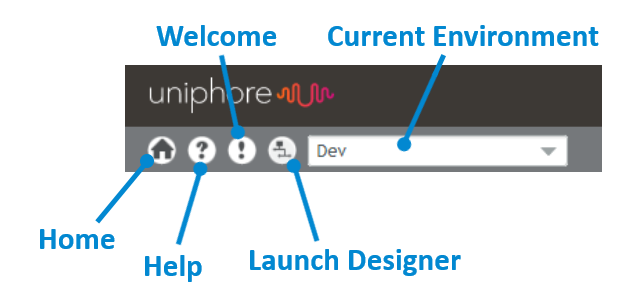

1 | Toolbar and Tenant Name | The Toolbar displays quick access icons to main activities. The name of the current Tenant account appears immediately to the right of the Toolbar.
| |
2 | Menu Bar | The Menu Bar on the left side of the page expands to provide links to each function of the X-Console. The Menu Bar is organized into the following sub-menus:
For more details on the sub-menus above, click here. You may see additional sub-menus listed, depending on your user role, the account license type and other factors. For example, when the account is licensed for Robotic Process Automation features, the RPA sub-menu will appear. | |
3 | Page Details | Shows available commands and properties for the page that is currently selected in the Menu Bar. When the Home page is displayed, this area provides quick links to each page, organized by Menu Bar functions. The quick links that appear will change according to user Role. Your last active page is remembered on logout and re-displayed when you reopen the X-Console. | |
4 | Open Designer | Click to run the X-Designer directly from the X-Console. | |
5 | Logout | Click to end the current X-Console session. |
