Machine Properties

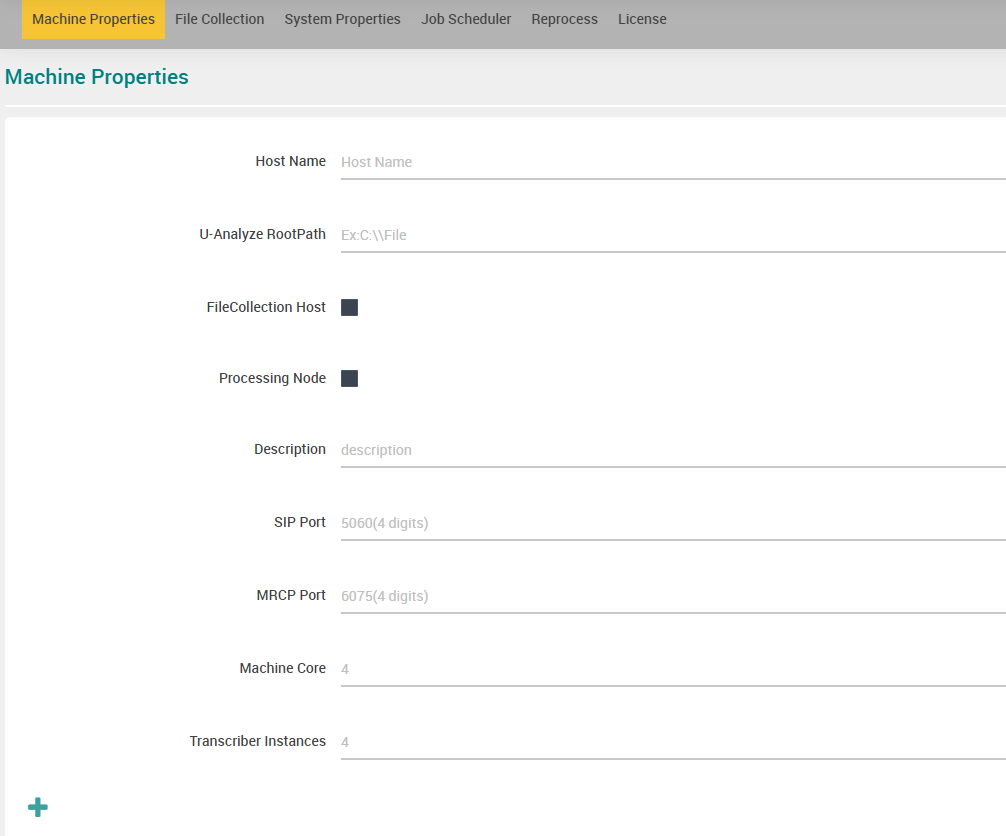

Select Machine Properties from the pane. By default, it appears with the list of Machine Properties.
 |
In the Host Name field, enter the host name of the machine.
In the U-Analyze RootPath field, mention the path where the audio files are placed.
Select the File Collection Host check box to set the host name provided in the Host Name field as the file collection host.
Note
You can set any one host as the File Collection Host.
Select the Processing Node check box to set the host name provided in the Host Name field as the processing node.
In the Description field, enter the details of the machine.
In the SIP Port field, mention the port number of Nuance Speech Server Session Initiation Protocol.
In the MRCP Port field, mention the port number of Nuance Speech Server Media Resource Control Protocol.
In the Machine Core field, mention the license value of Nuance Recognizer. If the BR Evaluation Engine is selected as Transcriber, mention the core size of the machine.
Note
The sum of core size values of each machine not be more than Recognizer License value mentioned in the “RecogLicenseLimit” field in the System Properties.
In the Transcriber Instance field, mention the number of instances to be processed in parallel in each processing node.
The sum of instances to be processed in parallel in each machine should not be more than Transcriber License value mentioned in the “TranscriptionLicenseLimit” field in the System Properties.
Transcriber Instance value mentioned in each machine is recommended to three times of machine core size.
Click Add Machine Properties (
) button to save and add the machine property.Click the machine property tile to edit and change information.
To delete, mouse over to machine property tile then click the delete button. An error message appears if we try to delete a Machine Properties “Do you want to delete (Machine properties name)” - Click Delete button to delete the machine property or click Close icon to discard.
