This section presents several examples that demonstrate the value and versatility of Custom Services. Each example features a different node.js module and shows how required code components should be written.

Parsing XML

This example shows how to convert an XML string into a format that can be used by the X‑Platform (a JSON object). The xml2js module is invoked by calling the require function, and the return values are the prices of a list of items.

(function(context) {

    var parseString = require('xml2js').parseString;

    var xmlText="<items><item name='BookA'><price>10</price><count>1</count></item><item name='BookB'><price>20</price><count>4</count></item></items>";
q();
    parseString(xmlText, function(err, result) {
context.complete(200, result.items.item[0].price[0]);

    });


})(context);

Converting Temperature

This example shows how to connect to a SOAP web service by invoking the soap node.js module. In this case, the service converts a temperature in Celsius to Fahrenheit, and the result returned is a simple single value.

(function(context) {

    var soap = require('soap');

soap.createClient("http://www.w3schools.com/webservices/tempconvert.asmx?wsdl", function(err, client) {
        client.CelsiusToFahrenheit({"Celsius ":context.params.celsius}, function(err, result){
context.complete(200, result);
        });
    });

})(context);

Although this example is a simple one, it demonstrates the ability of a Custom Service to help achieve limitless business capabilities by utilizing complex SOAP services.

Getting Weather

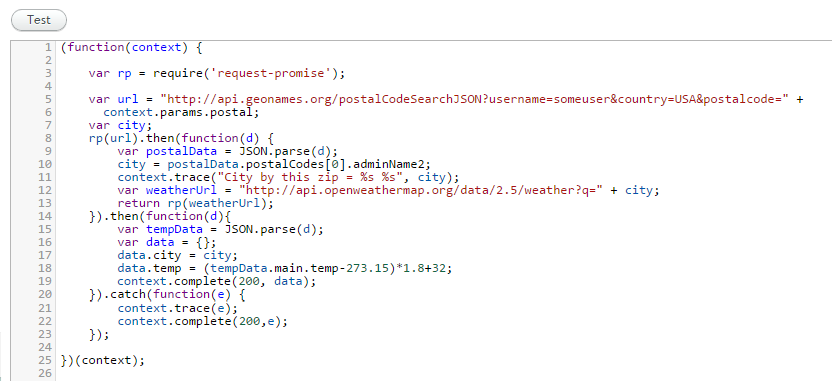

In this more complex example, the input parameter is the zip code of a city in the United States, and the response values are the name of the city and the current temperature in the city. As the temperature is returned in degrees Kelvin, an additional calculation is written in the code so the final result is returned in degrees Fahrenheit.

The example is explained in detail below the figure.
