U-Capture and Genesys Cloud
This topic provides general architecture details for the U-Capture Genesys Cloud integration. For system deployment details specific to a customer environment please refer to the customer’s Solution Design Document.
Integration Overview
This topic details the integration processes needed to provide active call recording for Genesys Cloud with U-Capture, to capture call audio and metadata for Genesys Cloud agents for inbound and outbound calls, internal calls between agents (for example consult calls) are not captured.
Note
If you are familiar with the U-Assist integration with Genesys Cloud, U-Capture integrates in a similar way.

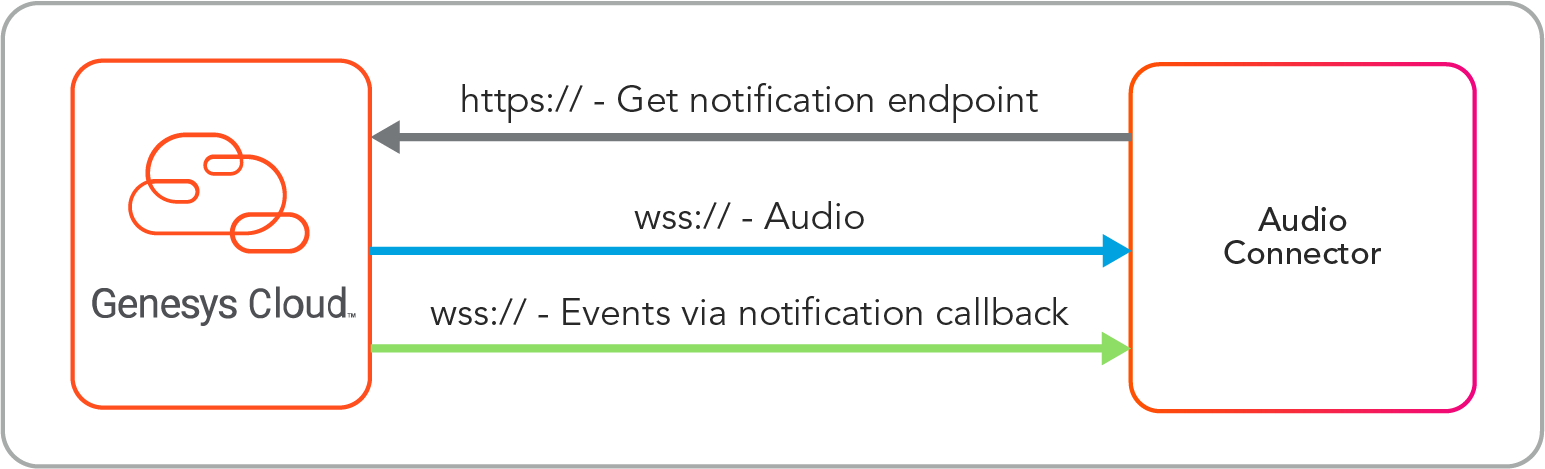

The U-Capture / Genesys Cloud integration makes use of AudioHook and the Genesys Notification Server to capture call audio chunks and metadata.
Genesys Cloud establishes a WebSocket connection using HTTPS GET (with an upgrade header and any additional information to authenticate the client), this initiates an open transaction providing session information and negotiates the media format. Once the Audio Connector receives the open transaction, it responds with an "opened" message, once the opened message is recieved Genesys Cloud will start streaming audio chunks and may send event notifications.
Once the call has ended, audio chunks will stop sending and a close message will be sent to the Audio Connector, the Audio Connector responds with a "closed" message and call capture is concluded, a final WebSocket and TLS/TCP handshake takes place to terminate the connection.
Resiliency

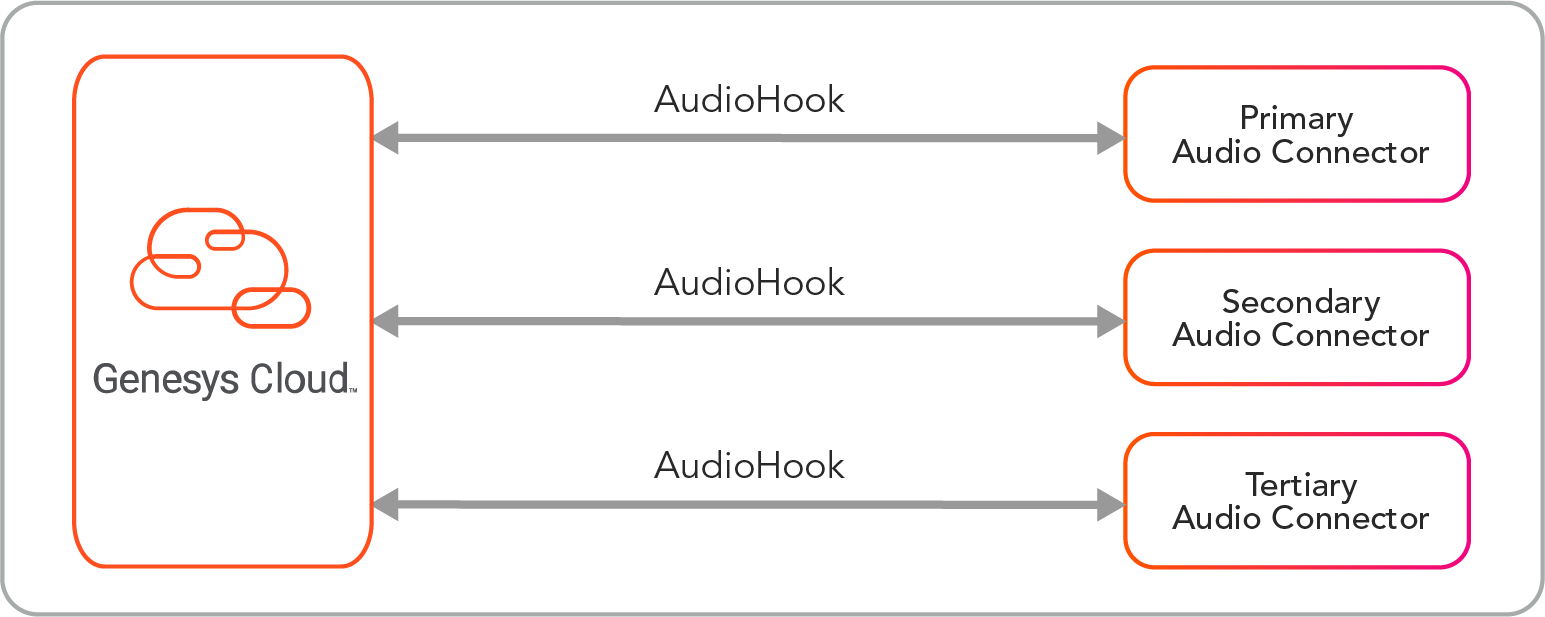

The Genesys Cloud integration supports an Active/Active (3N) resiliency model. Multiple replica Audio Connectors are automatically configured so that in the unlikely event that an Audio Connector goes down, the streams will continue to be captured by the remaining replica Audio Connectors. By default three replica Audio Connectors are available - the amount of replica Audio Connectors is a configurable option.
Genesys Cloud Multi-Tenancy
The Genesys Cloud integration supports Multi-Tenancy, where call audio and metadata can be captured from multiple instances of Genesys Cloud at the same time. This is achieved by configuring separate Audio Connectors with the relevant information for the Genesys Cloud instance in the matching regions, this is to avoid data being transferred out of the region.
At the time of writing, Audio Connectors can be configured in Asia Pacific (Dubai) Asia Pacific (Mumbai), Asia Pacific (Singapore), Asia Pacific (Tokyo), Australia (Sydney), Europe (Frankfurt), United Kingdom (London), and US East (Ohio).
